JibONE v2
Description
- JibONE is a new way to approach camera jibs. With a compact and motorized design, JibONE has created a new category of portable and motorized jibs.
- The system delivers 50 cm of motion in any direction, making it suitable for most productions.
- Despite its motorized capabilities, JibONE can also be controlled manually, allowing you to program camera movements instantly. It's the easiest to use programmable camera jib available.
- JibONE is strong enough to lift heavy camera equipment, including a DSLR with a HeadPLUS, and operates silently, making it ideal for product videography, interviews, and live video production.
- The system can be extended with add-ons like the Pan Module, transforming it into a 2-axis camera motion control solution. The pan module can be both motorized and manually controlled for fast positioning and programming.
- JibONE also communicates with HeadONE and HeadPLUS, offering the possibility to upgrade to a 5-axis motion control solution.
- With advanced features at an affordable price, JibONE is a unique and unmatched solution in the market.
Tech Specs
Learn the technical specs of JibONE
JibONE, Main counterweight, x3 additional Counterweight, Shutter Extension Cable (not shutter cable), NP-F Battery Bracket, AC/DC Adapter,
24 x 6.7 x 5.9 in (61 x 17 x 15cm)
12 lb / 5.5 kg (with 2.2 lb / 1 kg counterweight)
3/8"-16 mounting port on bottom, 3/8"-16 mounting screw on camera plate
11 lb / 5 kg or less (Camera + motorized head / tripod head)
3.1 lb / 1.4 kg (Camera + motorized head / tripod head)
4.5 x 2.1 x 0.7 in (115 x 55 x 19 mm)
2.2 lb / 1 kg single counterweight
1.64ft / 50 cm
Safety lock, adjustable Jib length & angle
50 cm in 140 sec
50 cm in 8 sec
Step motor with ultra high-res encoder.
x2 LP-E6 type battery or x2 NP-F type battery (NP-F Battery Bracket is included)(Batteries are not included)
With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
2.5 mm (Shutter trigger cable is sold separately)
HeadONE, HeadPLUS, Pan Module for JibONE
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
iOS 11.0 or later & Android 5.0 or later
CNC machined aluminum and stainless steel components.

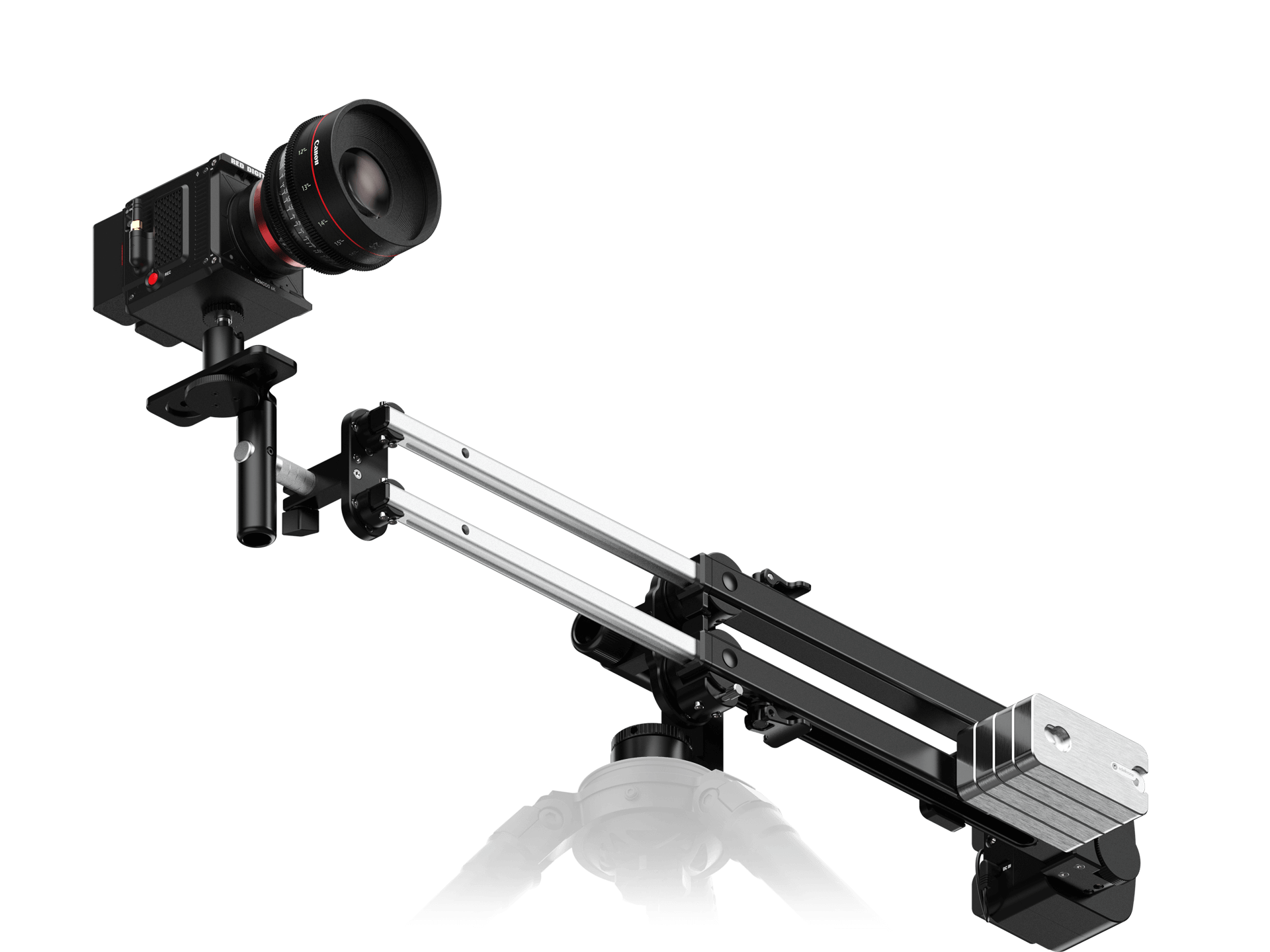

JibONE
The most portable jib in the world with unrivaled motorized motions & upgraded features. JibONE delivers the versatility & speed you need with complete edelkrone motion control ecosystem integration.
Watch Video
Fast & Flexible Motions
A smart & portable jib solution with 1.64 ft (50 cm) camera travel that mounts on a tripod to give you smooth, silent & sweeping motorized motions. Optimized for cameras up to 11 lb (5 kg), JibONE can be controlled remotely or operated manually allowing a fast & easy setup.
JibONE is a single axis jib but you can adjust the movement angle of the axis as you like. Set up JibONE vertically for incredible incline shots, horizontally for stunning slider-like movements, or diagonally to mix both axes for even more amazing angles.
Unparalleled Features for the Ultimate Jib Experience
Hand-Control for Unprecedented Efficiency
Add exceptional speed to your workflow by positioning JibONE by hand and saving it as a keypose in the edelkrone App. You can now remotely move JibONE between set positions with a single tap in the app.
Fast Setup, Fantastic Results
It only takes a few minutes to set up JibONE, no tools or assembly required. Just attach it to your tripod, extend the jib, get your camera in place, balance the counterweights, and you're ready to film.You can easily move JibONE around set using the locking mechanism, so you can pick it up and place it in a new position securely.
You Asked, We Listened
JibONE comes with a physical power on/off button for better power management, an information screen with instant feedback, and a better wireless connection with longer range.We engineered JibONE to improve the overall user experience and included a more durable head plate for increased strength. JibONE comes with the option for a fully wired connection with the addition of Wired Signal Hub.
Efficiency in Every Detail
Upright or Upside Down Mounting Options
JibONE has endless mounting options that add to its versatility. You can attach any tripod head, edelkrone HeadPLUS, or HeadONE upright or upside down based on your needs. You can mount upside down thanks to the 360° rotatable camera plate even if the setup is diagonal.
Easily Find the Perfect Balance
One of the most important factors when filming with a jib is without a doubt: balance. JibONE comes with four specially designed 2.2 lb (1kg) counterweights that easily slide back and forth to balance your setup.
Compact Size for Comfortable Travel

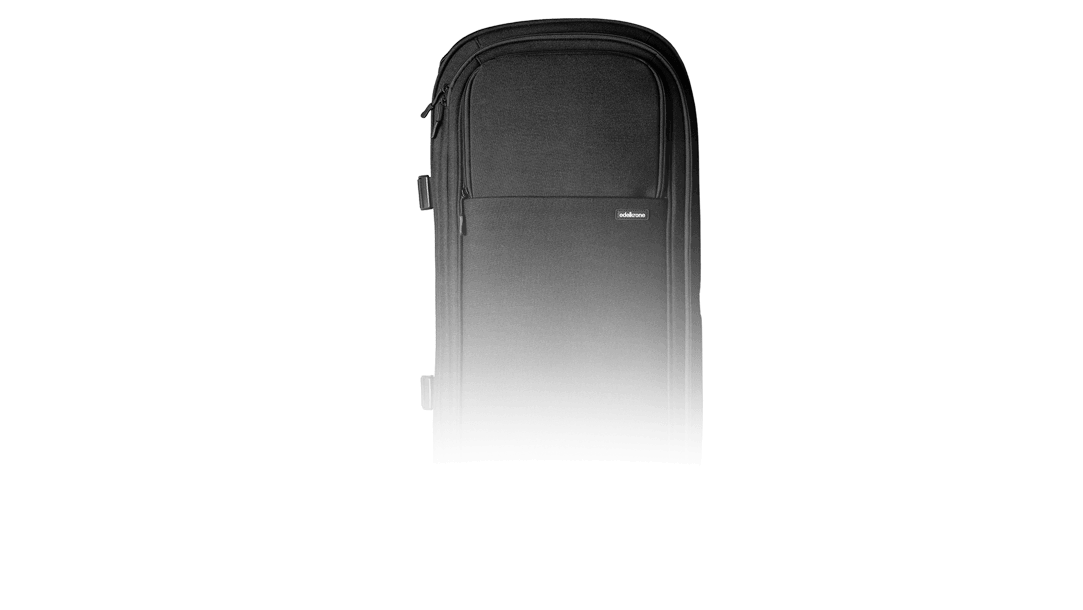

One of the standout features of JibONE is its amazing portability. When retracted, JibONE is a compact 24 in (61 cm) long, which can fit comfortably in your edelkrone Backpack.
Operate with the edelkrone App
edelkrone App cleverly scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices together.
The interface is extremely simple.
The App shows you this control screen when there is only one JibONE discovered around. The keypose, the transition speed, and the transition smoothness adjustments are always available on the main screen.
When you combine your JibONE with HeadPLUS, the App gives you this 4-axes control screen including the focus adjustment. Notice that the Target Mode also becomes available at the bottom for smart target tracking.
This is the time-lapse screen. First, enter your Record Time & Play Time and your FPS settings. Next, set the same shutter speed with your camera in the app & set the interval. Lastly, select the starting and ending keyposes. This way you will achieve a nice motion time-lapse video transitioning between both keyposes.
The App shows you this control screen when there is only one JibONE discovered around. The keypose, the transition speed, and the transition smoothness adjustments are always available on the main screen.
When you combine your JibONE with HeadPLUS, the App gives you this 4-axes control screen including the focus adjustment. Notice that the Target Mode also becomes available at the bottom for smart target tracking.
This is the time-lapse screen. First, enter your Record Time & Play Time and your FPS settings. Next, set the same shutter speed with your camera in the app & set the interval. Lastly, select the starting and ending keyposes. This way you will achieve a nice motion time-lapse video transitioning between both keyposes.

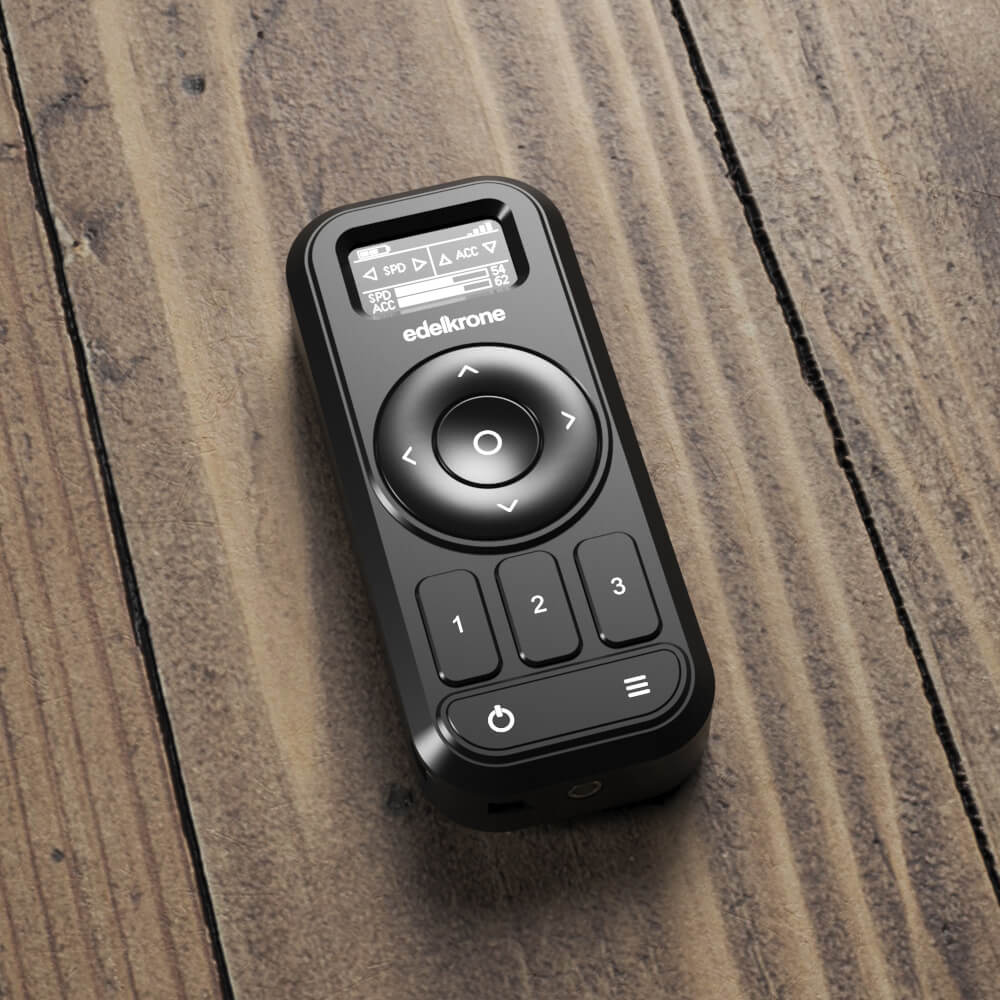

If you prefer not to use your phone (edelkrone App), and need a dedicated solution, Controller for edelkrone Moco will be your best friend. Compatible with all motorized edelkrone sliders, jibs, heads and dollies, Controller for edelkrone Moco allows you to easily control any combination of these devices.
Learn More
If you prefer not to use your phone (edelkrone App), and need a dedicated solution, Controller for edelkrone Moco will be your best friend. Compatible with all motorized edelkrone sliders, jibs, heads and dollies, Controller for edelkrone Moco allows you to easily control any combination of these devices.
Learn More
Perfect on the inside
Super Accurate Backlash-free Gear Design
All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots. Even the most portable edelkrone devices have heavy-duty gears assuring lifetime good performance.
Ultra Quiet Step Motor Driving Technology
All edelkrone motorized devices have a unique quiet step motor driving technology that combines ultra precise step motor positioning ability with ultra quiet operation. Step motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world’s most precise positioning with the quietest performance.
