HEADPLUS
Motorized Pan & Tilt Head with optional Focus Add-on. Includes smart object tracking with auto focusing + wireless connectivity with edelkrone motorized Sliders and Dollies.
Completely new mechanical design with backlash free gears.
Requires no tuning or optimization wizards.
Much better performance for multi-target shots.
Quieter operation.
Smoother manual operation.
Improved Carrying Capacity.
Works as a stand-alone pan&tilt head.
Compatible with V-Mount, Gold Mount and NP-F Batteries.
Laser Module compatible (instant target learning).
Built-in Wifi module for future updates.
LANC port for better remote camera management.
Unfolding Design, fits better in bags.
Centered Camera Weight (Better performance for indoor 360º photography. Easier to stabilize on small stands).
Wirelessly connects to edelkrone Sliders and Dollies.

BUY NOW
Already have the previous generation HeadPLUS? (Head Module)
Click here to enter our upgrade program.
HeadPLUS
This video does not represent the actual motion speeds of the devices. Please check the tech specs to learn more about the actual device top speeds.
Features that will separate you from the crowd
Automatic Target Tracking
HeadPLUS can learn 3 different targets, can keep any of them in the frame and focus on them even when it's moving on edelkrone sliders and dollies. With this automatic feature, you can achieve elegant parallax shots without spending any time programming the system.
Live Target Switching
You can make a smooth transition between any of the 3 preset targets by just selecting any of them. During each transition, HeadPLUS elegantly frames the new target, focuses on it and keeps it in the frame & focus as the camera moves.
Instant Target Learning
If you add Laser Module to HeadPLUS, you can teach the position of any stationary target to the system instantly. Just aim on the target and press OK. The camera will instantly frame and focus on the target.
Can be hand-controlled
You can manually adjust the pan and tilt angle of the HeadPLUS. This way, instead of using a remote control, you can, in fact, program your camera motions with your hands. This gives an unprecedented speed to your workflow, and makes the whole process much more intuitive.
Fits in a camera bag
Despite its unprecedented features, HeadPLUS (with all of its accessories) fits in a regular size camera bag. With its unique unfolding body design, HeadPLUS can be straightened so that it fits your bag much more efficiently.

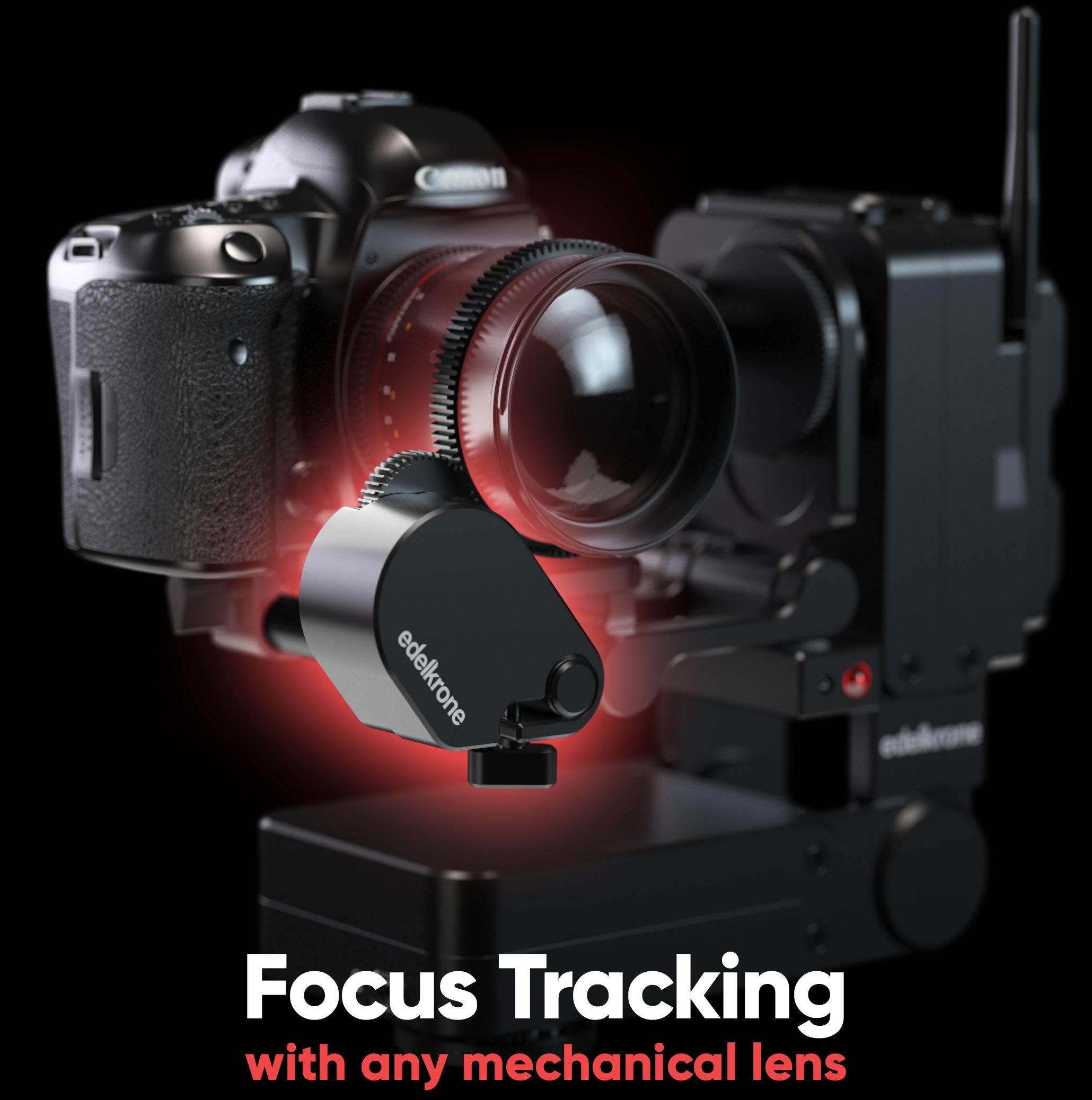

Add Focus Module to automate your focus
Add Focus Module to automate your focus
Focus Module is a motorized focusing add-on for HeadPLUS. When used with a slider or dolly, it can deliver auto-focusing feature as you get closer to or further away from your locked targets. Focus Module can also work in keypose mode where you can assign different focus adjustment on different keypose buttons and recall them when needed.
LEARN MORE ABOUT COMPATIBLE LENSES
Add Laser Module to speed up target teaching
Laser Module is a laser meter designed for HeadPLUS. Laser Module enables instant distance measurement and makes it super quick for HeadPLUS to lock on stationary subjects. It is a very useful add-on especially when you are using HeadPLUS on an edelkrone motorized Slider or Dolly.
Single App to control all
edelkrone App cleverly scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices together.

The interface is extremely simple.

Use the controls on the top part of the App screen to set the pose of your camera. Press and hold on any of the keypose buttons to record that pose. Use the same button to recall that pose. It’s that simple. Press 2 keyposes to put the system in loop between both keyposes.

You can adjust the speed and acceleration of the transition between keyposes. Or, you can easily create time-lapse videos by using the same keyposes.
edelkrone App (Screen Shot 01)
The app shows you this control screen when there is only one motorised HeadPLUS discovered around. The App gives you this 3 axis control screen including the focus adjustment.
edelkrone App (Screen Shot 02)
When you combine your HeadPLUS with a slider the App gives you this 4 axis control screen including the focus adjustment. Notice the Target Mode button also becomes available at the bottom for smart target tracking.
edelkrone App (Screen Shot 03)
When you combine your HeadPLUS with a Dolly, the App gives you this 5-axis control screen including the focus adjustment. Notice the Target Mode button also becomes available at the bottom for smart target tracking.
edelkrone App (Screen Shot 04)
After you complete recording a motion, this is the screen which lets you replay the motion recorded. You can also convert it into a time-lapse or stop-motion via this screen.
edelkrone App (Screen Shot 05)
This is the time-lapse setup screen. First, enter the time-lapse duration and interval. Next, select the starting and ending keyposes. This way, you will achieve a nice motion time-lapse video transitioning between both keyposes.
edelkrone App (Screen Shot 06)
When you setup your time-lapse, instead of entering a static interval, you can enter dynamic interval with the help of this graphic. So, you can have an alternating speed of time in your time-lapse video. This will not affect the speed of your camera motion.
edelkrone App (Screen Shot 07)
You can use this static step size adjustment to introduce smooth starts and stops to your motion time-lapse video.
edelkrone App (Screen Shot 08)
When you turn on the dynamic step size mode, you can alter the speed of your camera motion throughout your time-lapse video. This graphic helps you adjust the speed of your motion easily.
Super easy Motion Time-Lapse Programming
Setting up a motion time-lapse is the easiest with edelkrone App. In your time-lapse videos, you can have a simple transition between two keyposes or you can convert a recorded complex camera motion into a time-lapse with a single button.

You can use edelkrone’s unique Dynamic Interval and Dynamic Step Size Technologies to introduce never-before-seen efects to your time-lapses which bend the speed of time and speed of camera motion independently of each other. Such advanced and unique features have never come together with such simplicity prior to the edelkrone App.
2 models based on carrying capacity
HeadPLUS
HeadPLUS
Up to 10 pounds (4.5 kg) carrying capacity.
HeadPLUS PRO
HeadPLUS PRO
Up to 20 pounds (9 kg) carrying capacity.
Super Accurate Backlash-free Gear Design
All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots. Even the most portable edelkrone devices have heavy-duty gears assuring lifetime good performance.
Ultra Silent Step Motor Driving Technology
Ultra Silent Step Motor Driving Technology
All edelkrone motorized devices have a unique silent step motor driving technology which combines ultra precise step motor positioning ability with ultra silent operation. Step motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world’s most precise positioning with the quietest performance.
HEADPLUS
BOX CONTENTS HeadPLUS, L Bracket for cameras up to 10 pounds (4.5 kg), width extenders for SliderPLUS legs, link cable, allen keys
Size HeadPLUS: (L x W x H) 13.8 x 3.9 x 2.7 in (353 x 100 x 70 mm) L Bracket (folded) (L x W x H) 6.7 x 5.6 x 2.9 in (170 x 143 x 75 mm)
Weight HeadPLUS: 4.85 lb (2.20kg) L Bracket: 15 oz (426 gr)
Recommended Camera Load 10 pounds (4.5kg)
Mounting Options 3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.
Min. step size 0.022 degree
Max. speed 360° in 20 sec
Number of axes 2 (Pan & Tilt)
Motor type 2 x ultra precise step motors with ultra high-res encoders.
Battery life With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 5 hours (continuously at full speed)
Shoots 36000 photographs (in Time-Lapse mode)

1 Sony NP-F970 battery is 47.4 Wh
Power input LP-E6 type battery, NP-F type battery, AC/DC adapter (NOT included)
Shutter trigger cable socket 2.5 mm (shutter trigger cable sold seperately)
Compatibility Slide Module, Focus Module, Laser Module, SliderPLUS, SliderONE, DollyONE, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.
Mobile device connection Bluetooth low-energy communication.
App. compatibility iOS 11.0 or later & Android 5.0 or later
Materials CNC machined aluminum and stainless steel components.
DC plug specs Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
HEADPLUS PRO
BOX CONTENTS HeadPLUS PRO, L Bracket for cameras up to 20 pounds (9 kg), width extenders for SliderPLUS legs, link cable, allen keys
Size HeadPLUS PRO: (L x W x H) 17 x 4 x 3 in (432 x 103 x 78 mm) L Bracket (folded) (L x W x H) 6.8 x 5.9 x 3.1 in (174 x 150 x 80 mm)
Weight HeadPLUS PRO: 7.9 lb (3.62kg) L Bracket: 15.8 oz (450 gr)
Recommended Camera Load 20 pounds (9kg)
Mounting Options 3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.
Min. step size 0.022 degree
Max. speed 360° in 20 sec
Number of axes 2 (Pan & Tilt)
Motor type 2 x ultra precise step motors with ultra high-res encoders.
Battery life With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 4 hours (continuously at full speed)
Shoots 28800 photographs (in Time-Lapse mode)

1 Anton Bauer Digital 90 Gold Mount Battery is 93 Wh
1 Anton Bauer Digital 90 V-Mount Battery is 93 Wh
Power input V-Mount type battery, Gold Mount type battery, AC/DC adapter (NOT included)
Shutter trigger cable socket 2.5 mm (shutter trigger cable sold seperately)
Compatibility Slide Module, Focus Module, Laser Module, SliderPLUS PRO, SliderONE PRO, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.
Mobile device connection Bluetooth low-energy communication.
App. compatibility iOS 11.0 or later & Android 5.0 or later
Materials CNC machined aluminum and stainless steel components.
DC plug specs Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
FOCUS MODULE
BOX CONTENTS Focus Module, rod for Focus Module, extension rod, lens calibration chart & stand, 3 x lens gear.
Size (L x W x H) 9.05 x 2.55 x 1.18 in (230 x 65 x 30 cm)
Weight 1.3 lb (590 g)
Gear pitch Standard 0.8 mm (all professional cinema lenses)
Lens compatibility All lenses with the included edelkrone lens gear ring. Not compatible with servo lenses (focus by wire).
Number of axes: Single (Focus)
Motor type Coreless DC motor with ultra high-res encoder.
Power input Powered by HeadPLUS.
Compatibility Requires HeadPLUS to operate.
Materials CNC machined aluminum and stainless steel components.
LASER MODULE
BOX CONTENTS Laser module, Laser module magnetic plate
Size (L x W x H) 3.1 x 1.2 x 0,7 in (80 x 31 x 18 mm)
Weight 3.2 oz (91 gr)
Range 0,3-40 m (without reflection)
Power input Powered by HeadPLUS.
Compatibility Requires HeadPLUS, HeadPLUS PRO
Materials CNC machined aluminum and stainless steel components.
edelkrone Motion Control System Introduction Video
This video introduces the devices in our motion control ecosystem and describes the commonly-shared key features of these devices.

After watching this video, you will discover the unique features that give amazing powers to creators and see why edelkrone is one of the leaders in the motion control industry.
